#include <cstdint>
#include "datatypes.h"
#include <stdlib.h>
#include <Arduino.h>
#include "uc_boards.h"

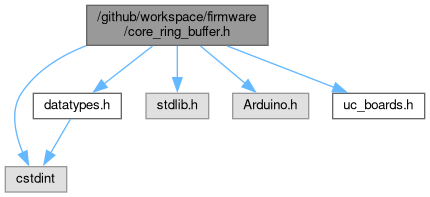

Include dependency graph for core_ring_buffer.h:

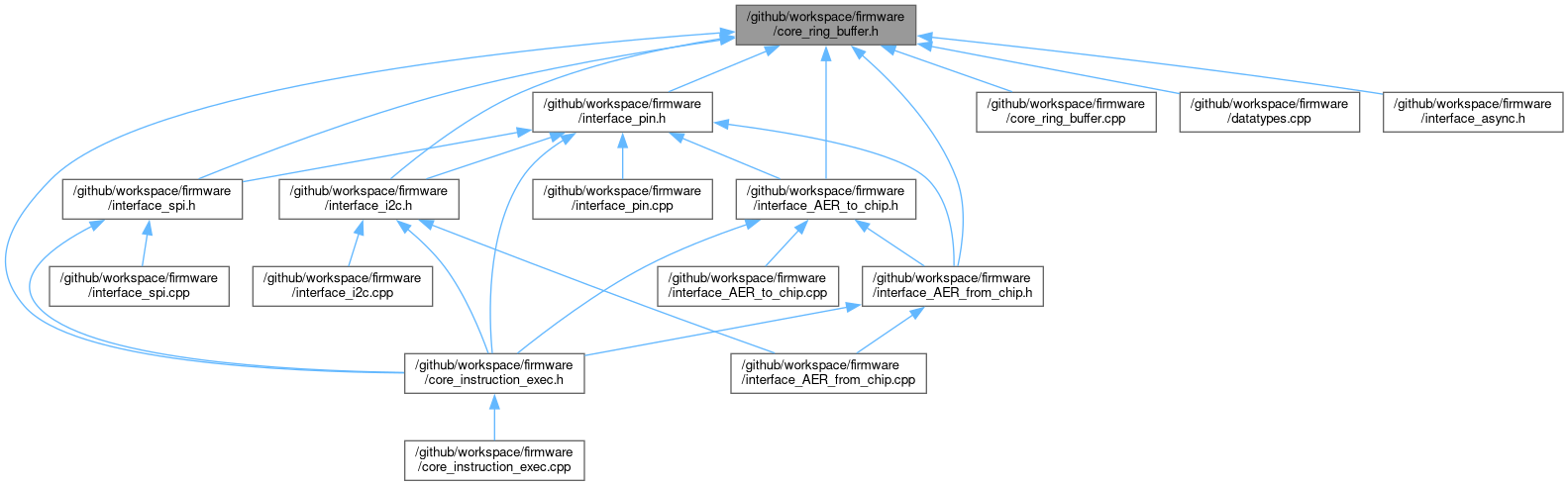

This graph shows which files directly or indirectly include this file:

Functions
void	add_input_packet (packet_t *input_packet)

void	disable_gpio_interrupt ()

void	enable_gpio_interrupt ()

void	error_message (uint8_t error_header, uint8_t source_header)

void	error_message (uint8_t error_header, uint8_t source_header, uint32_t value, uint8_t sub_source_header=255)

void	error_message_bypass_buffer (uint8_t error_header, uint8_t source_header, uint32_t value, uint8_t sub_source_header=255)

bool	is_input_buffer_not_full ()

bool	is_output_buffer_not_full ()

void	send_config (uint8_t header, uint8_t config_header, uint8_t value)

void	send_data32 (uint8_t header, uint32_t value, bool is_confirmation=false)

void	send_data_i2c (uint8_t header, uint8_t device_address_8, uint8_t register_address, uint8_t value_ms, uint8_t value_ls, bool is_confirmation=false)

void	send_input_ring_buffer ()

void	send_input_ring_buffer_free_spots ()

void	send_output_ring_buffer ()

void	send_output_ring_buffer_first ()

void	send_output_ring_buffer_last (bool conf=true)

void	send_pin (uint8_t header, uint8_t id, uint8_t value, bool is_confirmation=false)

void	set_read_on_request (uint8_t state)

void	setup_ring_buffer ()

Variables
volatile packet_t	input_ring_buffer [INPUT_BUFFER_SIZE]

volatile uint16_t	input_ring_buffer_next_free

volatile uint16_t	input_ring_buffer_start

volatile bool	is_realtime

volatile uint16_t	loop_runs_without_gpio_interrups

volatile unsigned long	offset_time

volatile bool	output_buffer_overflow

volatile bool	output_buffer_read

volatile packet_t	output_ring_buffer [OUTPUT_BUFFER_SIZE]

volatile uint16_t	output_ring_buffer_next_free

volatile uint16_t	output_ring_buffer_start

volatile bool	read_active

Function Documentation

◆ add_input_packet()

void add_input_packet ( packet_t * input_packet )

Definition at line 156 of file core_ring_buffer.cpp.

◆ disable_gpio_interrupt()

void disable_gpio_interrupt ( )

Definition at line 51 of file core_ring_buffer.cpp.

◆ enable_gpio_interrupt()

void enable_gpio_interrupt ( )

Definition at line 61 of file core_ring_buffer.cpp.

◆ error_message() [1/2]

void error_message	(	uint8_t	error_header,
		uint8_t	source_header
	)

Definition at line 298 of file core_ring_buffer.cpp.

◆ error_message() [2/2]

void error_message	(	uint8_t	error_header,
		uint8_t	source_header,
		uint32_t	value,
		uint8_t	sub_source_header = `255`
	)

Definition at line 286 of file core_ring_buffer.cpp.

◆ error_message_bypass_buffer()

void error_message_bypass_buffer	(	uint8_t	error_header,
		uint8_t	source_header,
		uint32_t	value,
		uint8_t	sub_source_header = `255`
	)

Definition at line 302 of file core_ring_buffer.cpp.

◆ is_input_buffer_not_full()

bool is_input_buffer_not_full ( )

Definition at line 120 of file core_ring_buffer.cpp.

◆ is_output_buffer_not_full()

bool is_output_buffer_not_full ( )

Definition at line 72 of file core_ring_buffer.cpp.

◆ send_config()

void send_config	(	uint8_t	header,
		uint8_t	config_header,
		uint8_t	value
	)

Definition at line 274 of file core_ring_buffer.cpp.

◆ send_data32()

void send_data32	(	uint8_t	header,
		uint32_t	value,
		bool	is_confirmation = `false`
	)

Definition at line 237 of file core_ring_buffer.cpp.

◆ send_data_i2c()

void send_data_i2c	(	uint8_t	header,
		uint8_t	device_address_8,
		uint8_t	register_address,
		uint8_t	value_ms,
		uint8_t	value_ls,
		bool	is_confirmation = `false`
	)

Definition at line 248 of file core_ring_buffer.cpp.

◆ send_input_ring_buffer()

void send_input_ring_buffer ( )

Definition at line 219 of file core_ring_buffer.cpp.

◆ send_input_ring_buffer_free_spots()

void send_input_ring_buffer_free_spots ( )

Definition at line 134 of file core_ring_buffer.cpp.

◆ send_output_ring_buffer()

void send_output_ring_buffer ( )

Definition at line 169 of file core_ring_buffer.cpp.

◆ send_output_ring_buffer_first()

void send_output_ring_buffer_first ( )

Definition at line 190 of file core_ring_buffer.cpp.

◆ send_output_ring_buffer_last()

void send_output_ring_buffer_last ( bool conf = true )

Definition at line 203 of file core_ring_buffer.cpp.

◆ send_pin()

void send_pin	(	uint8_t	header,
		uint8_t	id,
		uint8_t	value,
		bool	is_confirmation = `false`
	)

Definition at line 262 of file core_ring_buffer.cpp.

◆ set_read_on_request()

void set_read_on_request ( uint8_t state )

Definition at line 45 of file core_ring_buffer.cpp.

◆ setup_ring_buffer()

void setup_ring_buffer ( )

Definition at line 36 of file core_ring_buffer.cpp.

Variable Documentation

◆ input_ring_buffer

volatile packet_t input_ring_buffer[INPUT_BUFFER_SIZE]

extern

Definition at line 21 of file core_ring_buffer.cpp.

◆ input_ring_buffer_next_free

volatile uint16_t input_ring_buffer_next_free

extern

Definition at line 23 of file core_ring_buffer.cpp.

◆ input_ring_buffer_start

volatile uint16_t input_ring_buffer_start

extern

Definition at line 22 of file core_ring_buffer.cpp.

◆ is_realtime

volatile bool is_realtime

extern

Definition at line 34 of file core_ring_buffer.cpp.

◆ loop_runs_without_gpio_interrups

volatile uint16_t loop_runs_without_gpio_interrups

extern

Definition at line 32 of file core_ring_buffer.cpp.

◆ offset_time

volatile unsigned long offset_time

extern

Definition at line 30 of file core_ring_buffer.cpp.

◆ output_buffer_overflow

volatile bool output_buffer_overflow

extern

Definition at line 27 of file core_ring_buffer.cpp.

◆ output_buffer_read

volatile bool output_buffer_read

extern

Definition at line 28 of file core_ring_buffer.cpp.

◆ output_ring_buffer

volatile packet_t output_ring_buffer[OUTPUT_BUFFER_SIZE]

extern

Definition at line 24 of file core_ring_buffer.cpp.

◆ output_ring_buffer_next_free

volatile uint16_t output_ring_buffer_next_free

extern

Definition at line 26 of file core_ring_buffer.cpp.

◆ output_ring_buffer_start

volatile uint16_t output_ring_buffer_start

extern

Definition at line 25 of file core_ring_buffer.cpp.

◆ read_active

volatile bool read_active

extern

Definition at line 31 of file core_ring_buffer.cpp.
