Packet Class Reference

Packet class to be used as a base class for all packets acting as an interface. More...

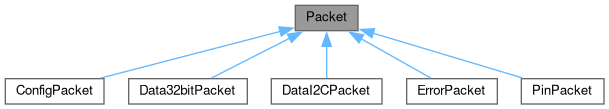

Inheritance diagram for Packet:

Public Member Functions
def	__init__ (self)
def	check_and_log (self)
	check_and_log logs the packet if the header is in the logging lists More...
def	from_bytearray (cls, byte_array)
	method to construct a packet from a bytearray depending on the header the correct packet type is returned More...
def	header (self)
	getter method for the header attribute More...
def	set_exec_time (self, time)
	setter method for the execution time attribute More...
def	set_header (self, header)
	setter method for the header attribute More...
def	time (self)
	getter method for the time attribute More...
def	to_bytearray (self)
	placeholder for converting the package to a bytearray More...

Detailed Description

Packet class to be used as a base class for all packets acting as an interface.

it contains the static method from_bytearray to construct a packet from a bytearray and chooses the correct packet type depending on the header

Definition at line 24 of file packet.py.

Constructor & Destructor Documentation

__init__()

def __init__

(

self

)

Reimplemented in ConfigPacket, DataI2CPacket, ErrorPacket, PinPacket, and Data32bitPacket.

Definition at line 30 of file packet.py.

Member Function Documentation

check_and_log()

def check_and_log

(

self

)

check_and_log logs the packet if the header is in the logging lists

Definition at line 114 of file packet.py.

from_bytearray()

def from_bytearray	(		cls,
			byte_array
	)

method to construct a packet from a bytearray depending on the header the correct packet type is returned

Parameters

byte_array

(bytearray) the bytearray to construct the packet from

Returns

: the constructed packet of the coresponing sub type

Reimplemented in Data32bitPacket, DataI2CPacket, PinPacket, ConfigPacket, and ErrorPacket.

Definition at line 36 of file packet.py.

header()

def header

(

self

)

getter method for the header attribute

    :return: the header of the packet
    :rtype: EnumInt entry or int

Definition at line 75 of file packet.py.

set_exec_time()

def set_exec_time	(		self,
			time
	)

setter method for the execution time attribute

Parameters

time	(uint_32) the time of execution of the packet

Definition at line 99 of file packet.py.

set_header()

def set_header	(		self,
			header
	)

setter method for the header attribute

Parameters

header

(byte/uint_8) the header of the packet

Reimplemented in Data32bitPacket, DataI2CPacket, PinPacket, ConfigPacket, and ErrorPacket.

Definition at line 90 of file packet.py.

time()

def time

(

self

)

getter method for the time attribute

    :return: the time of execution of the packet
    :rtype: EnumInt entry or int

Definition at line 82 of file packet.py.

to_bytearray()

def to_bytearray

(

self

)

placeholder for converting the package to a bytearray

Returns

: the packet as a bytearray

Reimplemented in Data32bitPacket, DataI2CPacket, PinPacket, ConfigPacket, and ErrorPacket.

Definition at line 108 of file packet.py.

---

The documentation for this class was generated from the following file:

• /github/workspace/uC_api/packet.py
